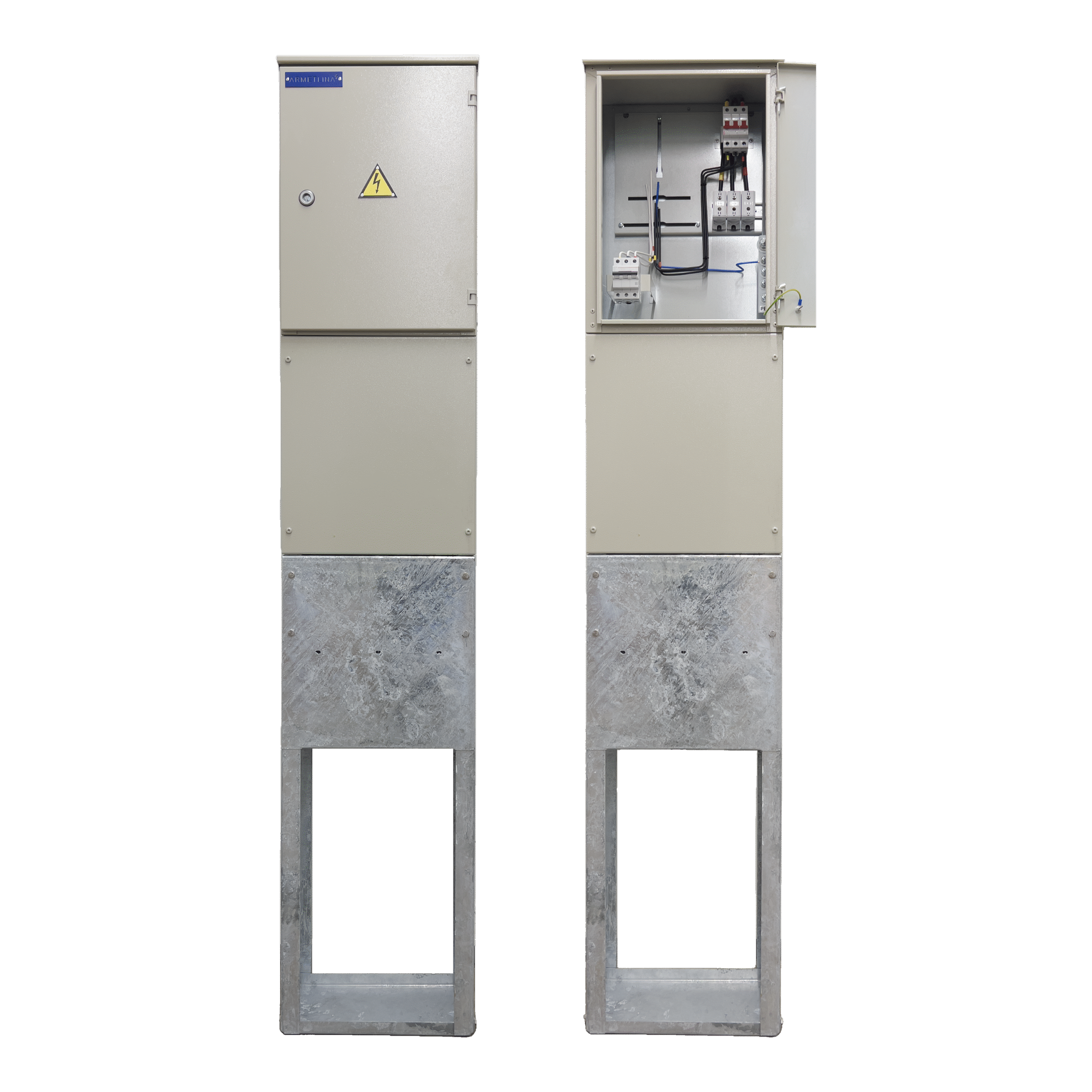

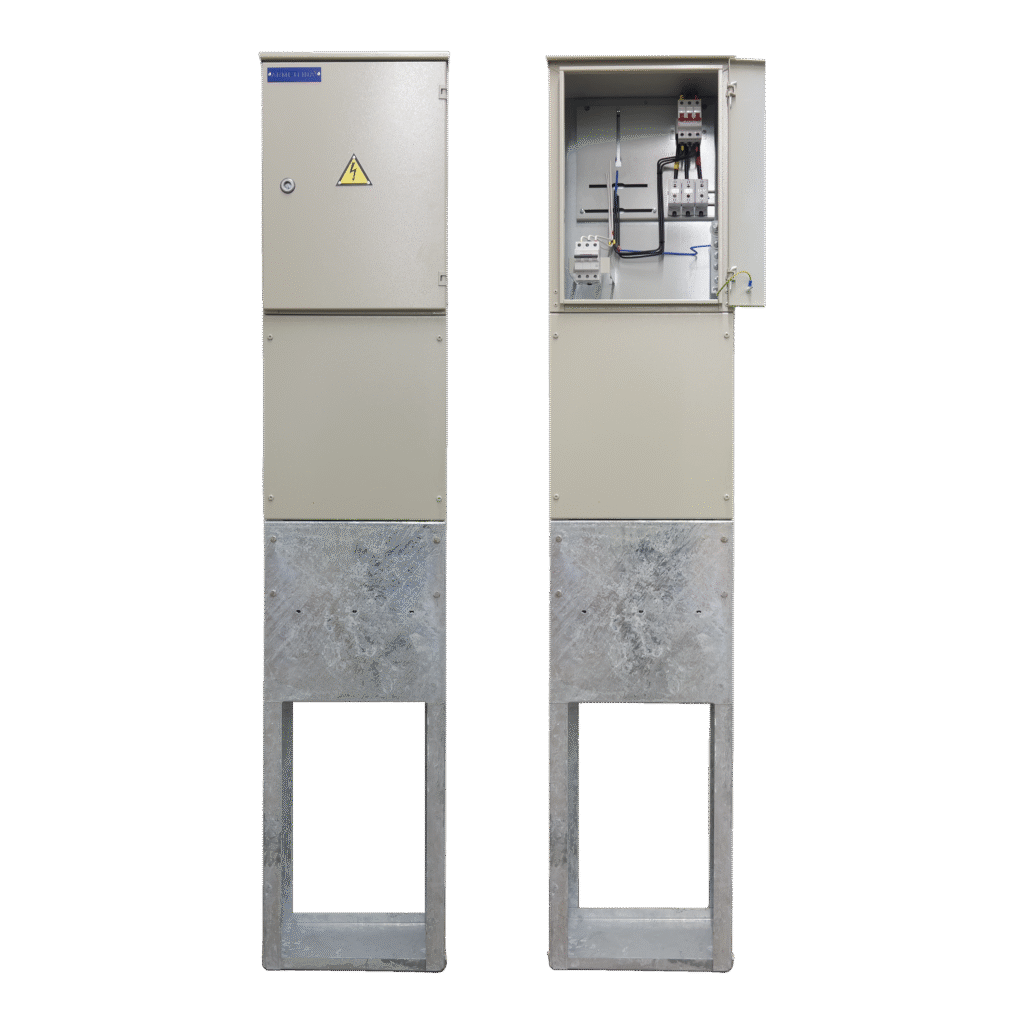

ĮEAS – 301

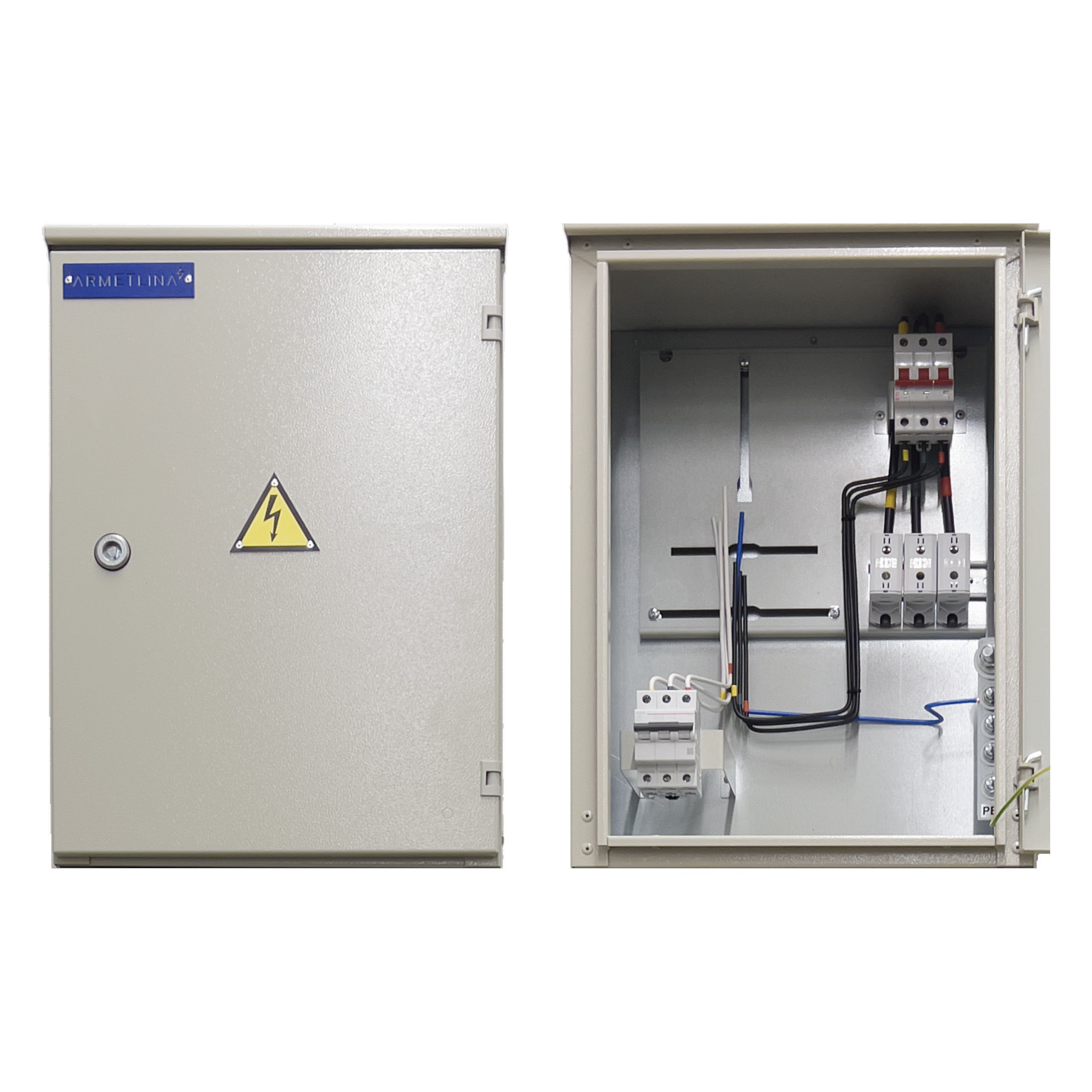

Designed for connecting a customer to a three-phase/single-phase 400V / 230V, 50Hz power distribution network. Suitable for indoor and outdoor installation. The sealable metering compartment is designed to accommodate all types of direct-connection electricity metering devices. Complies with the technical requirements of AB “ESO”.
| Number of meters | |
|---|---|
| Dimensions (H.W.D.), mm | |
| Nominal voltage: | ~230/400V |
| Rated current: | 100A, 63A |
| Rated frequency: | 50Hz |
| Vardinė izoliacijos įtampa (Ui) | 690V |
| Vardinė atlaikomoji impulsinė įtampa (Uimp) | 6 kV |
| Vardinė trumpalaikė atlaikomoji srovė (Icw) | 6 kA / 1 s |
| Vardinė didžiausia atlaikomoji srovė (Ipk) | 12 kA |
| Apsauga nuo elektros smūgio | I klasė, PE apsauginis sujungimas, IP2X |
| Degree of protection: | |
| Mechanical resistance: | IK10 |
| Altitude above sea level: | |
| Ambient temperature: | |
| Relative humidity: | ≤ 100% (at +25°C) |
| Ventilation: | Passive |
| Enclosure: | Galvanized sheet steel DX51D+Z275, 1.5 mm thick, painted in standard RAL7032 color (other options available according to the project). |
| Mounting: | On a plinth, on a buried foundation, at a support, at a wall |
Optional accessories
Related products
ĮEAS – 301
| Number of meters | |
|---|---|
| Dimensions (H.W.D.), mm | |
| Nominal voltage: | ~230/400V |
| Rated current: | 100A, 63A |
| Rated frequency: | 50Hz |
| Vardinė izoliacijos įtampa (Ui) | 690V |
| Vardinė atlaikomoji impulsinė įtampa (Uimp) | 6 kV |
| Vardinė trumpalaikė atlaikomoji srovė (Icw) | 6 kA / 1 s |
| Vardinė didžiausia atlaikomoji srovė (Ipk) | 12 kA |
| Apsauga nuo elektros smūgio | I klasė, PE apsauginis sujungimas, IP2X |
| Degree of protection: | |
| Mechanical resistance: | IK10 |
| Altitude above sea level: | |
| Ambient temperature: | |
| Relative humidity: | ≤ 100% (at +25°C) |
| Ventilation: | Passive |
| Enclosure: | Galvanized sheet steel DX51D+Z275, 1.5 mm thick, painted in standard RAL7032 color (other options available according to the project). |
| Mounting: | On a plinth, on a buried foundation, at a support, at a wall |
Basic Information
Enclosure:
Galvanized sheet steel DX51D+Z275, 1.5 mm thick, painted in standard RAL7032 color (other options available according to the project).
