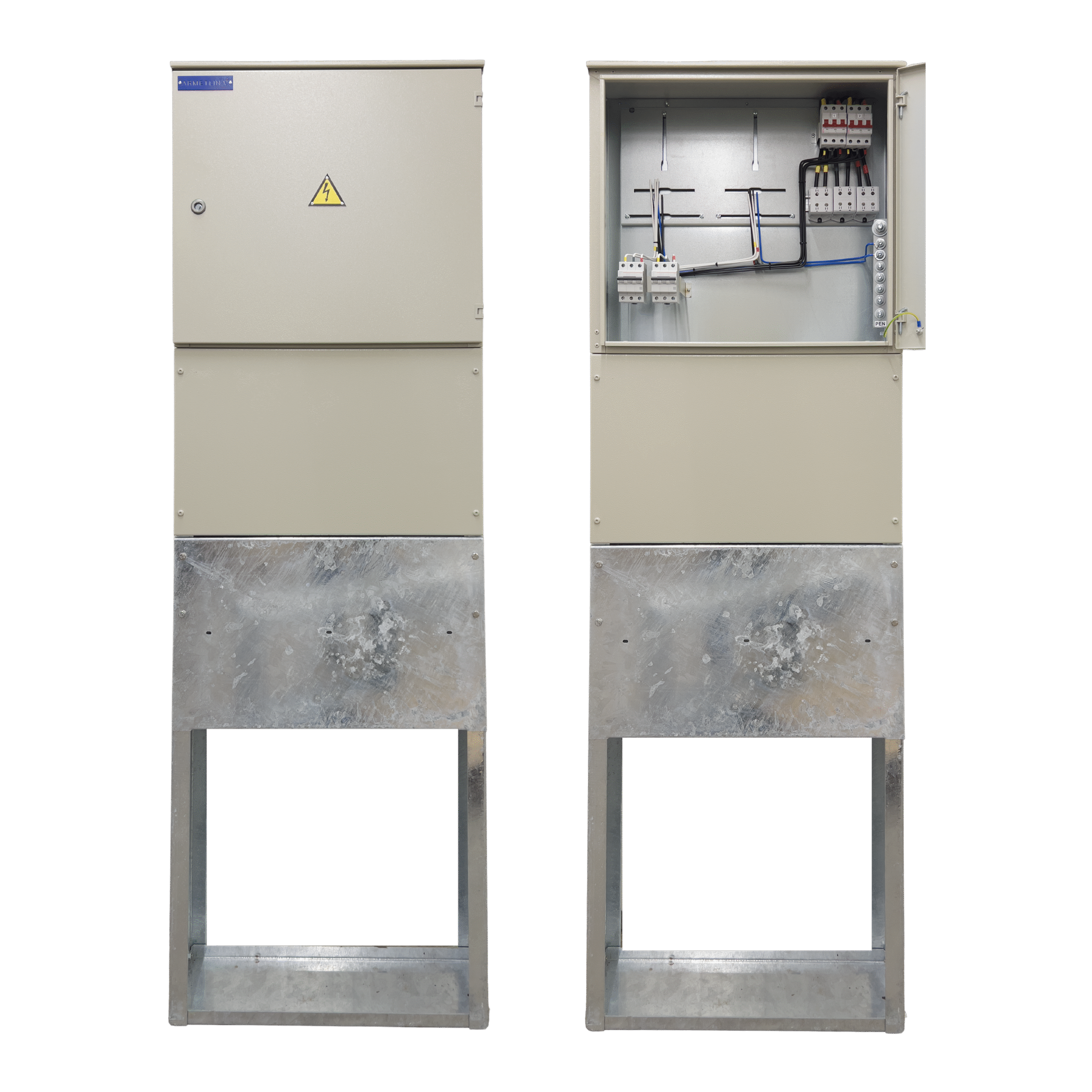

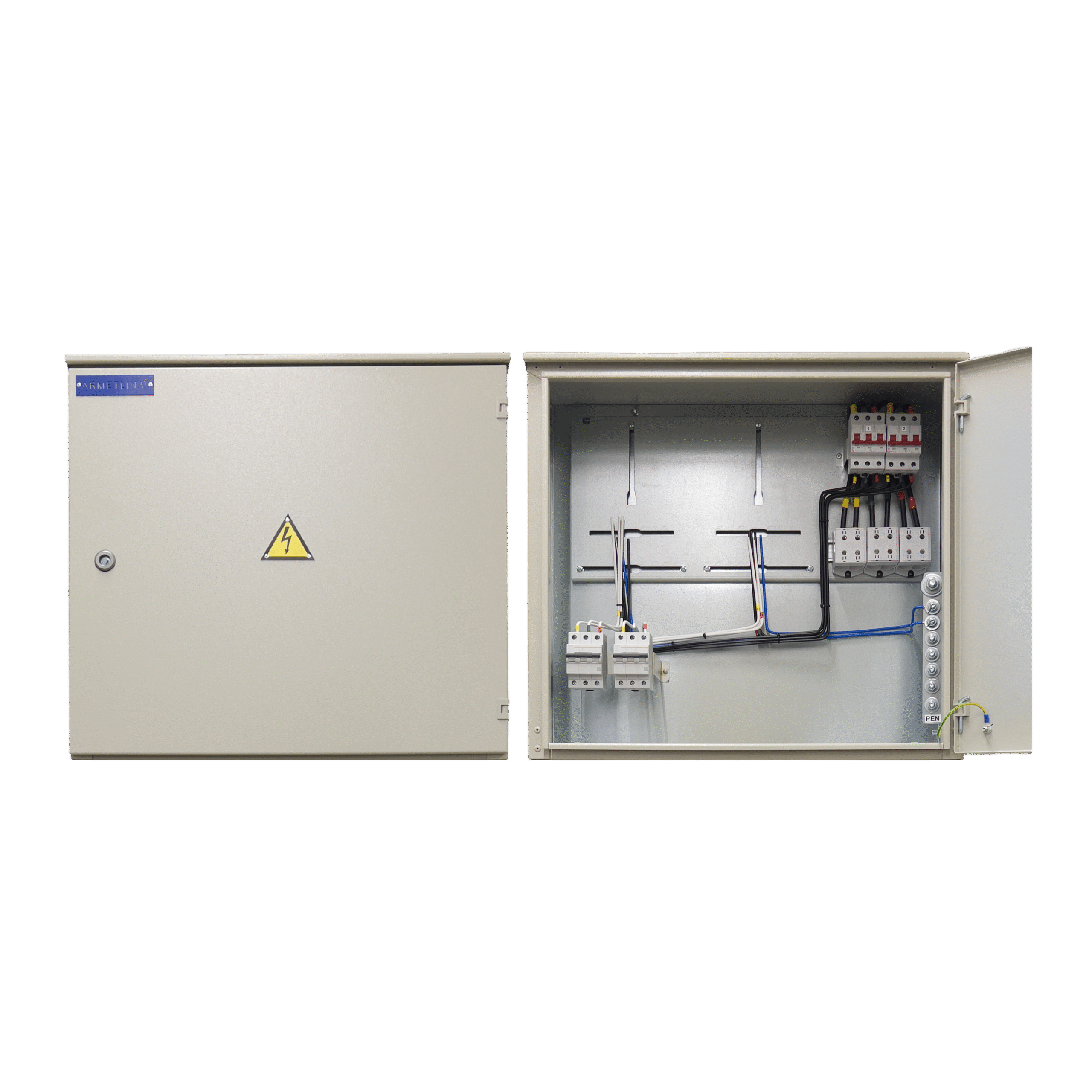

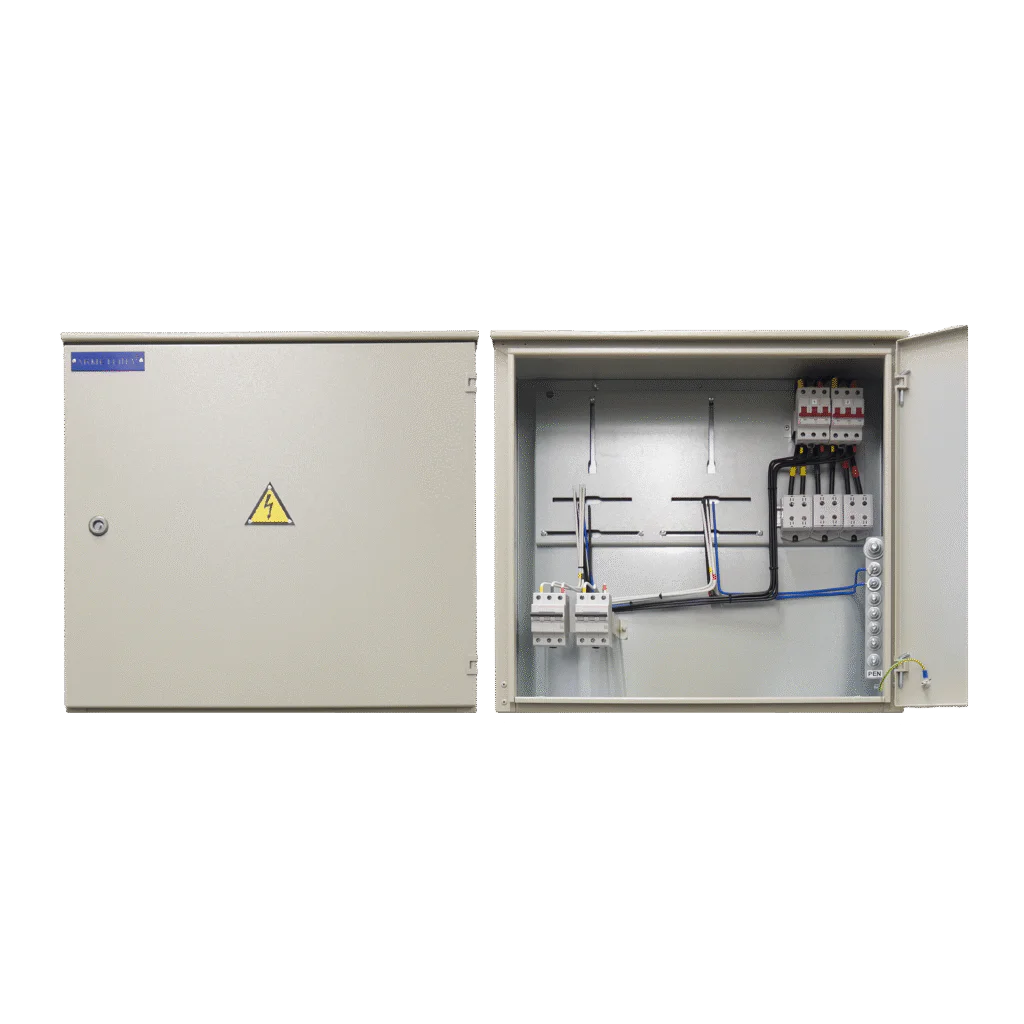

ĮEAS – 302
Designed for connecting electrical network subscribers to three-phase/single-phase 400V/230V, 50 Hz electrical network; Suitable for indoor and outdoor operation; The sealable metering section module is adapted for installing all types of direct connection electrical metering devices; Complies with AB ‘ESO’ technical requirements.
| Dimensions (H.W.D.), mm | |
|---|---|
| Number of meters | |
| Rated operational voltage (Ue) | ~230/400V |
| Rated frequency (fn) | 50 Hz |
| Rated insulation voltage (Ui) | 690V |
| Rated impulse withstand voltage (Uimp) | 6 kV |
| Rated current of the assembly (InA) | 100 A, 63 A |
| Rated short-time withstand current (Icw) | ≤ 10kA (for 1s) |
| Rated peak withstand current (Ipk) | 12 kA |
| Degree of protection (IP) | IP44 |
| Mechanical impact resistance (IK) | IK10 |
| Protection against electric shock | Class I |
| Ventilation | Passive |
| Intended location | Lauke, Vidaus patalpose |
| Mounting | On a plinth, on a buried foundation, at a support, at a wall |
| Enclosure: | Cinkuotas lakštinis plienas DX51D+Z275, storis 1.5 mm. |
| Altitude above sea level | ≤ 2000 m |
| Ambient temperature | -35…+40°C |
| Relative humidity | ≤ 100% (at +25°C) |
| Standards | LST EN 61439-1, LST EN 61439-5 |
Optional accessories
You may also like…
Related products

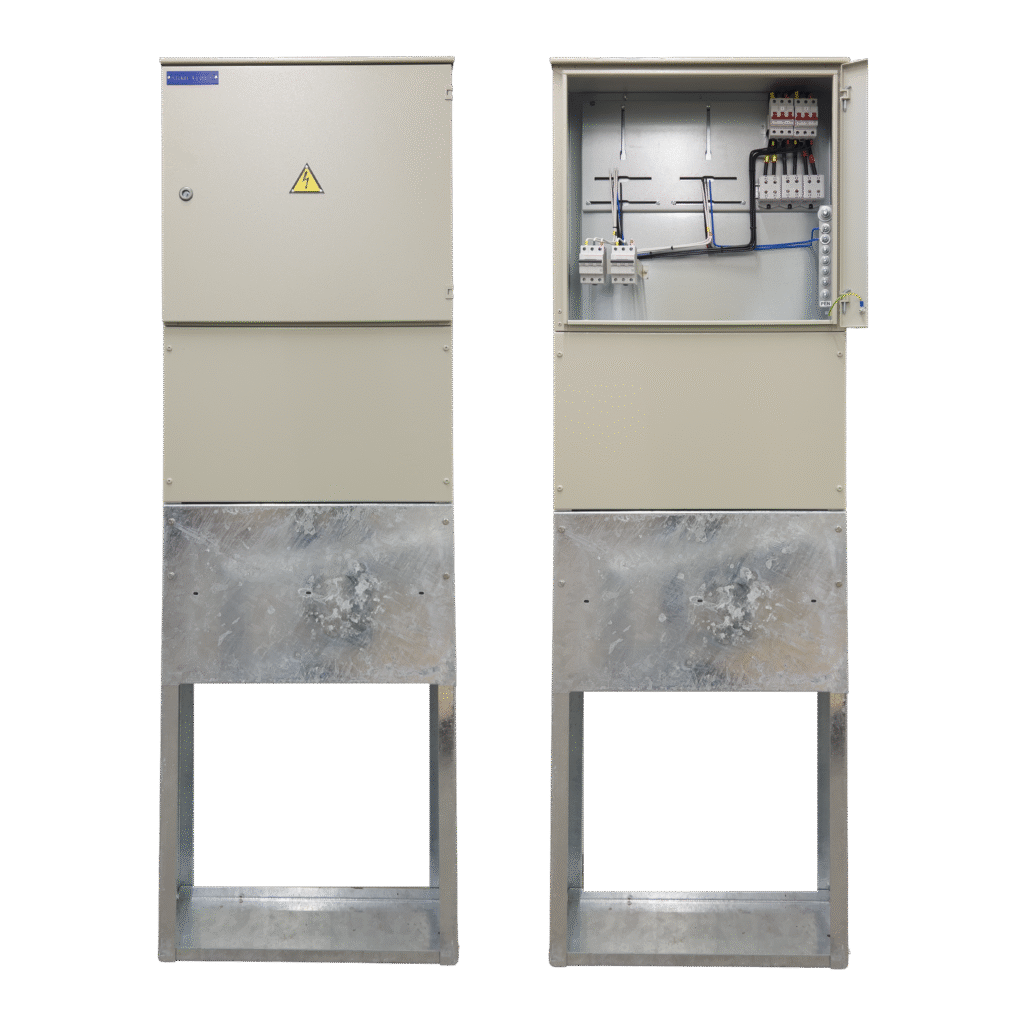

ĮEAS – 302
| Dimensions (H.W.D.), mm | |
|---|---|
| Number of meters | |
| Rated operational voltage (Ue) | ~230/400V |
| Rated frequency (fn) | 50 Hz |
| Rated insulation voltage (Ui) | 690V |
| Rated impulse withstand voltage (Uimp) | 6 kV |
| Rated current of the assembly (InA) | 100 A, 63 A |
| Rated short-time withstand current (Icw) | ≤ 10kA (for 1s) |
| Rated peak withstand current (Ipk) | 12 kA |
| Degree of protection (IP) | IP44 |
| Mechanical impact resistance (IK) | IK10 |
| Protection against electric shock | Class I |
| Ventilation | Passive |
| Intended location | Lauke, Vidaus patalpose |
| Mounting | On a plinth, on a buried foundation, at a support, at a wall |
| Enclosure: | Cinkuotas lakštinis plienas DX51D+Z275, storis 1.5 mm. |
| Altitude above sea level | ≤ 2000 m |
| Ambient temperature | -35…+40°C |
| Relative humidity | ≤ 100% (at +25°C) |
| Standards | LST EN 61439-1, LST EN 61439-5 |
Enclosure:
Galvanized sheet steel DX51D+Z275, 1.5 mm thick, painted in standard RAL7032 color (other options available according to the project).
