ESS-2-32TA

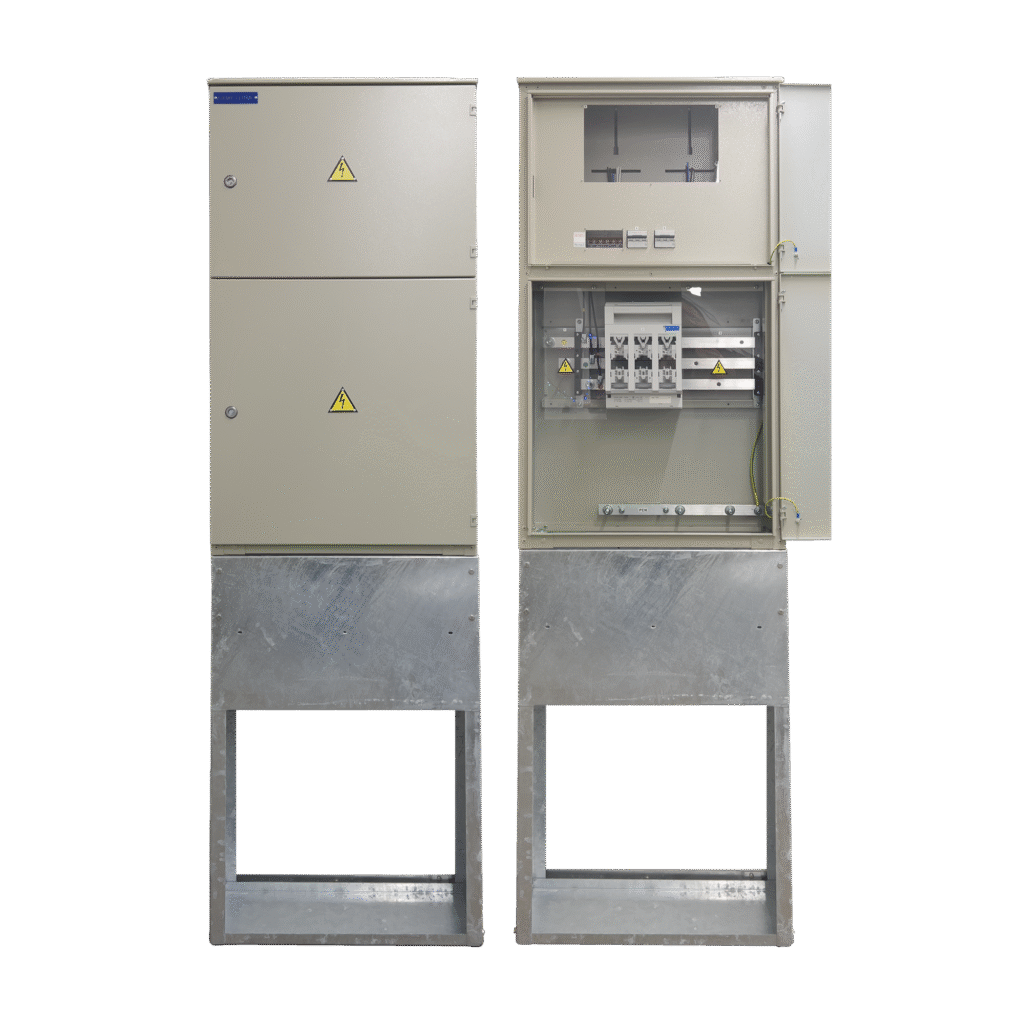

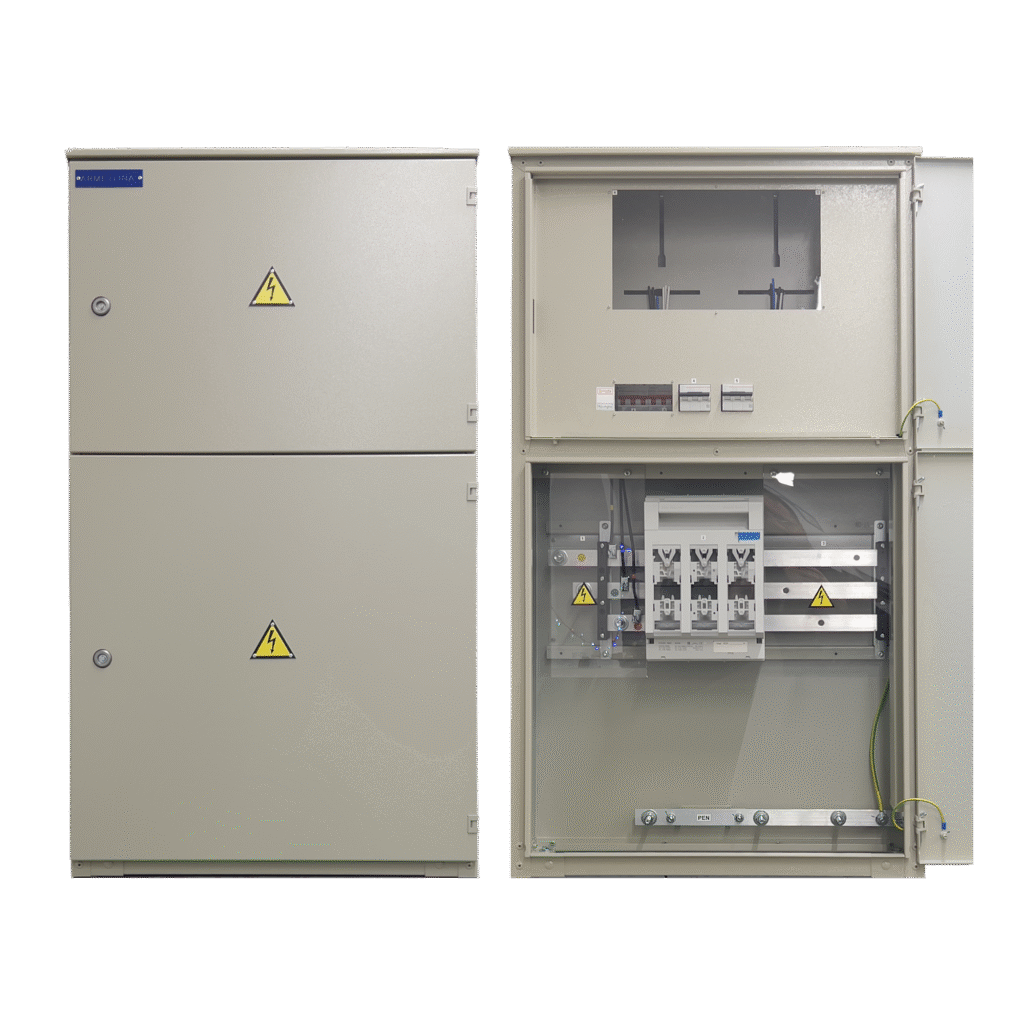

Two-meter transit cable distribution cabinet designed to connect three cables (≤ 240 mm²) to busbars and/or NH2 (400A) switching devices.
| Dimensions (H.W.D.), mm | |
|---|---|
| Number of meters | |
| Number of fuse disconnector blocks | 3 |
| Nominal voltage: | ~400V |
| Rated current: | ≤ 400A |
| Rated frequency: | 50Hz |
| Degree of protection: | |
| Mechanical resistance: | IK10 |
| Short-circuit current Icw: | ≤ 10kA |
| Altitude above sea level: | |
| Ambient temperature: | |
| Relative humidity: | ≤ 100% (at +25°C) |
| Ventilation: | Passive |
| Mounting: | on a buried foundation |
| Standards: | LST EN 10346, LST EN 61439-1, LST EN 61439-5 |
Basic Information
Description
Designed for the distribution and protection of three-phase ~400V, 50Hz electrical power and for connecting electrical network subscribers; The cable section module is adapted to install horizontal fuse-switch blocks from various manufacturers; The cable section module is equipped with a 60mm busbar system; Suitable for operation indoors and outdoors; The sealable metering section module is adapted for installing all types of direct connection electrical metering devices; Complies with AB ‘ESO’ technical requirements.
Enclosure:
Galvanized sheet steel DX51D+Z275, 1.5 mm thick, painted in standard RAL7032 color (other options available according to the project).
