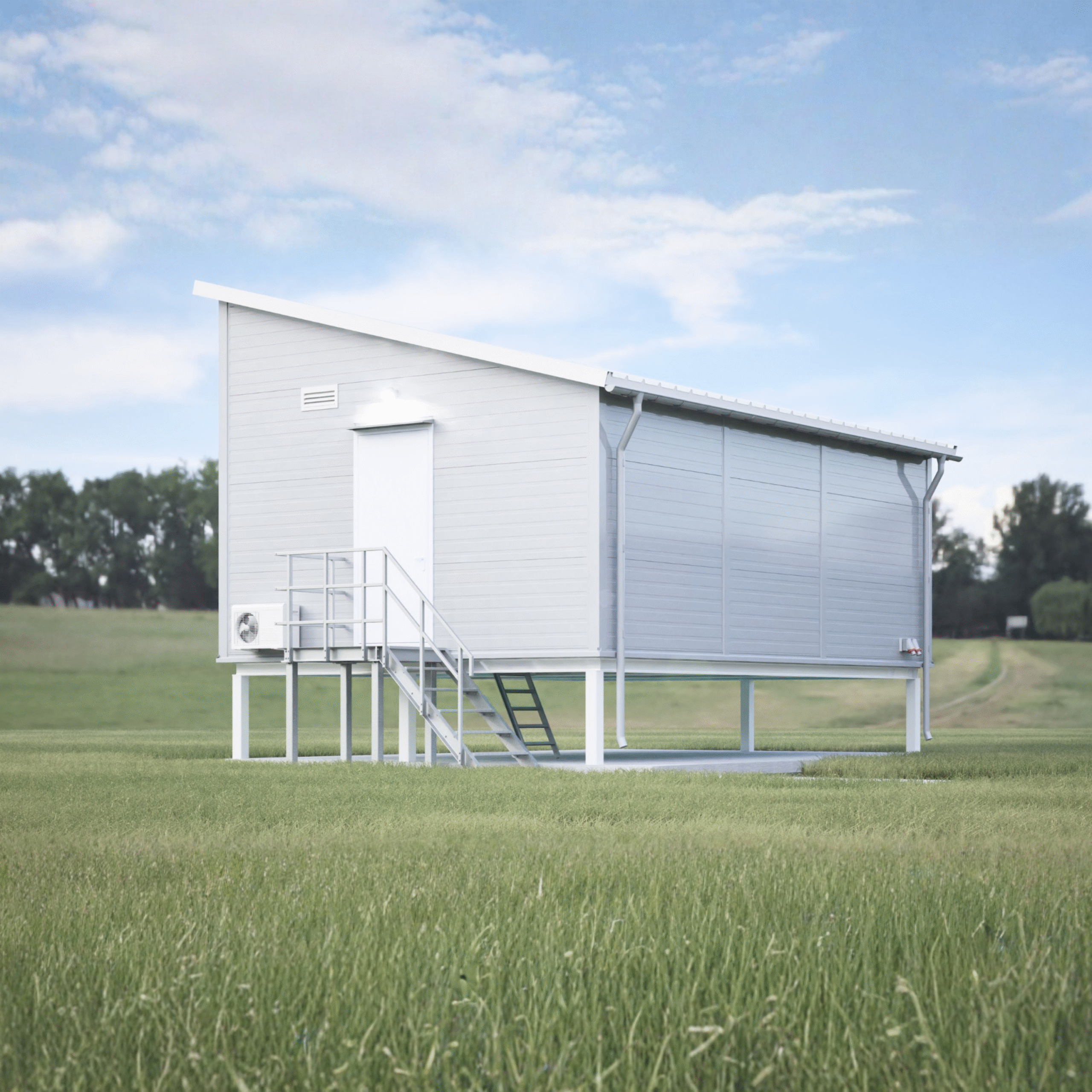

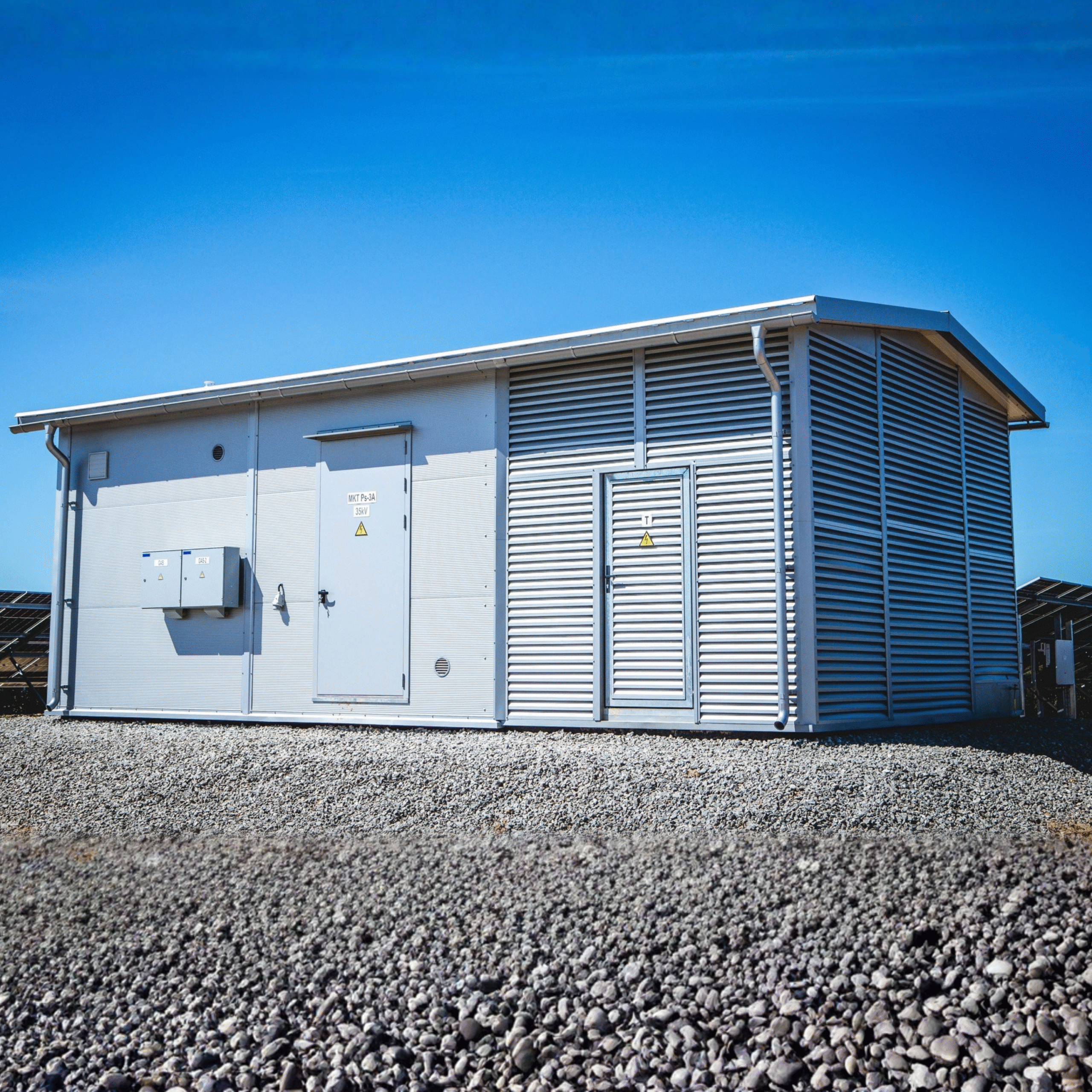

(MKP) Modular Frame Building (E-House)
Designed for the installation of control equipment in 10–110 kV transformer substations.
| Degree of protection: | |
|---|---|
| Altitude above sea level: | |
| Ambient temperature: | |
| Relative humidity: | ≤ 100% (at +25°C) |
| Ventilation: | Passive (natural convection) / Active (mechanical forced ventilation) |
| Mounting: | Foundation |
| Heating: | Automatic electric heating, maintaining temperatures from +16°C to +30°C. |
| Lighting: | Working lighting in all rooms, outdoor lights above entrances with motion sensors, emergency lighting. |
| Standards: | LST EN 62271-202 |
Basic Information
Description
A modular frame building (E-House) is a frame structure assembled from metal frameworks and multilayer panels; it can be used for mounting various electrical power devices and switchboards. Thanks to its modular design, optimal layout is possible, and it can be expanded or relocated as needed. It complies with the technical requirements of AB “ESO” and Litgrid.
Enclosure:
Load-bearing structures: Rectangular/square structural steel tubes according to EN 10219, steel grade S235/S355. The structures are coated with ≥70 μm zinc alloy coating in accordance with LST ISO 1461. All metal structures are covered with certified fireproof coating.Roof and walls: Sandwich panels with polyurethane foam (PIR) according to EN 14509.Core thickness: 100 mm. Finish color: RAL-9006 (exterior), RAL-9010 (interior). Thermal transmittance coefficient: U = 0.22 [W/(m²·K)] according to EN 14509. Reaction to fire: B-s2,d0 according to EN 13501.Floor:Bottom supporting layer: galvanized steel sheets, 1.5 mm thick. Middle layer: mineral wool 125/150 mm. Top layer: calcium sulfate boards.Earthing and lightning protection: According to EĮĮBT ST.
Additional information
Equipment / Package contents:
It can be equipped with HVAC systems, normal and emergency lighting systems, security and fire alarm systems, channels for electrical arc venting to the outside, and stairs to the cable basement.
