ESS-100.50.28-X

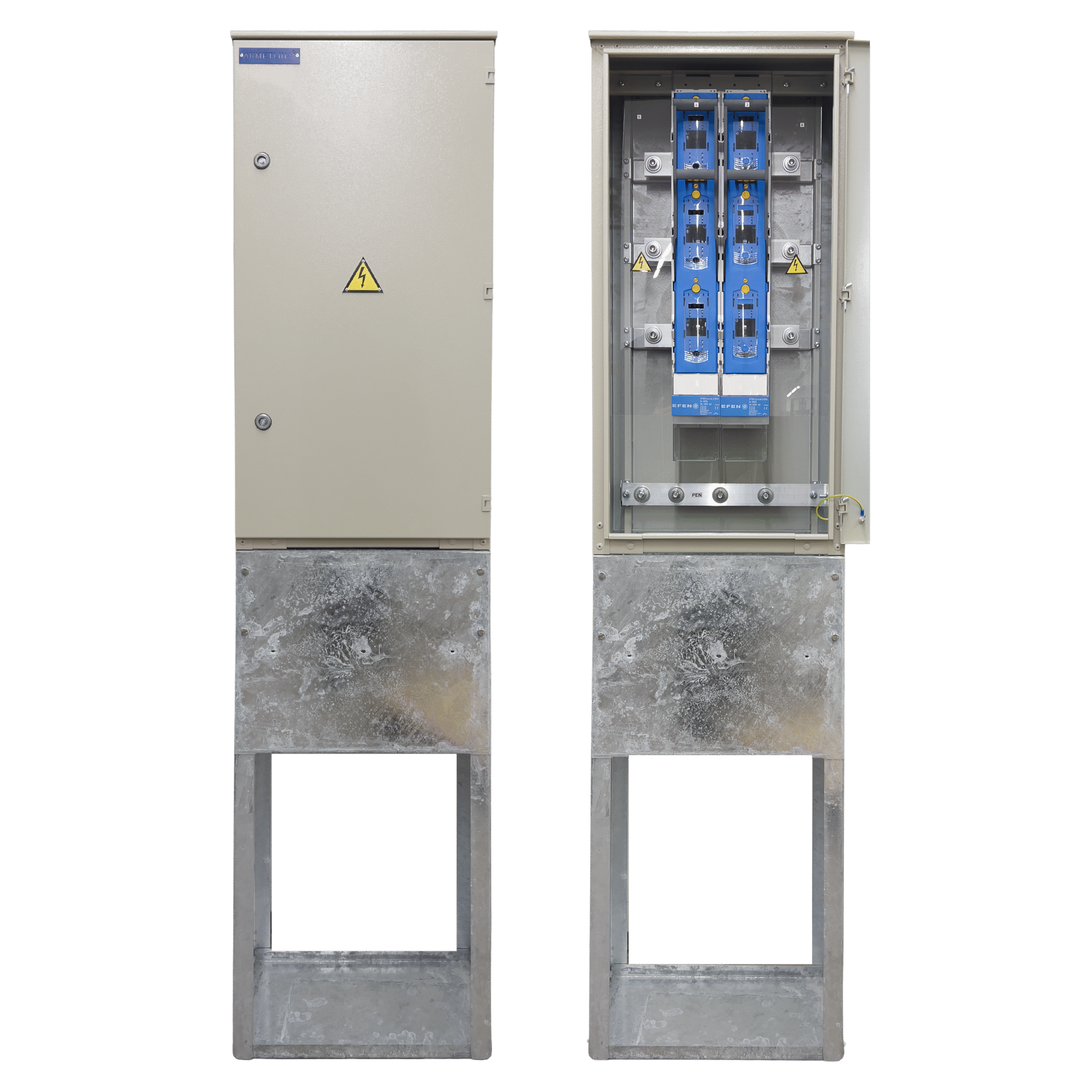

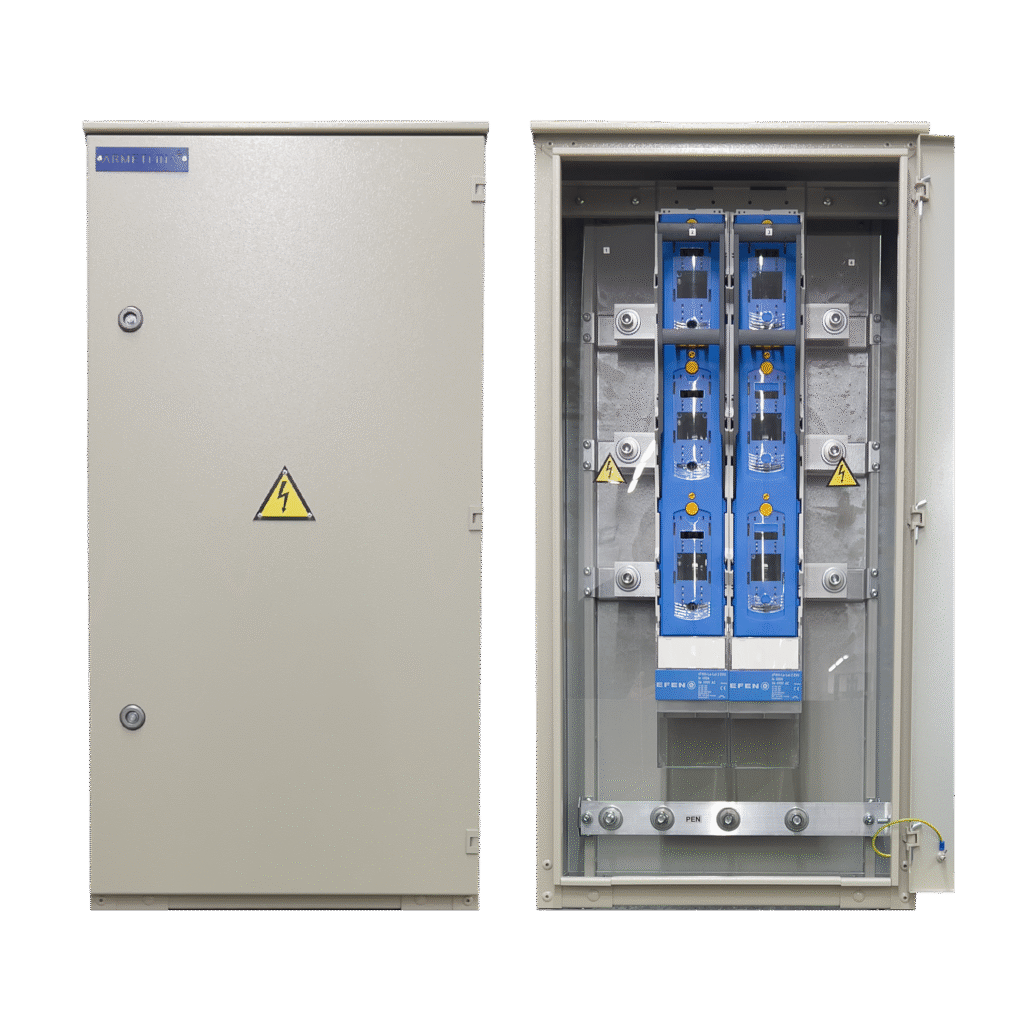

The 0.4 kV cable cabinet is designed to connect four cables (≤ 240 mm²) to busbars and/or switching devices NH2/NH3 (400A/630A).
| Dimensions (H.W.D.), mm | |
|---|---|
| Nominal voltage: | ~400V |
| Rated current: | 400A, 630A |
| Rated frequency: | 50Hz |
| Mechanical resistance: | IK10 |
| Short-circuit current Icw: | ≤ 10kA |
| Altitude above sea level: | |
| Ambient temperature: | |
| Relative humidity: | ≤ 100% (at +25°C) |
| Ventilation: | Passive |
| Mounting: | On the plinth, on a recessed foundation |
| Standards: | LST EN 10346, LST EN 61439-1, LST EN 61439-5 |
Basic Information
Description
Designed for the distribution of three-phase ~400 V, 50 Hz electrical power in transit lines and for their protection against overloads and short circuits. The cable section module is adapted for installing vertical fuse-switch disconnector blocks from various manufacturers. A 185 mm busbar system is prepared in the cable section module. Suitable for indoor and outdoor use. Complies with AB “ESO” technical requirements. Let me know if you’d like this text polished further for a catalog or tender document.
Enclosure:
Galvanized sheet steel DX51D+Z275, 1.5 mm thick, painted in standard RAL7032 color (other options available according to the project).
